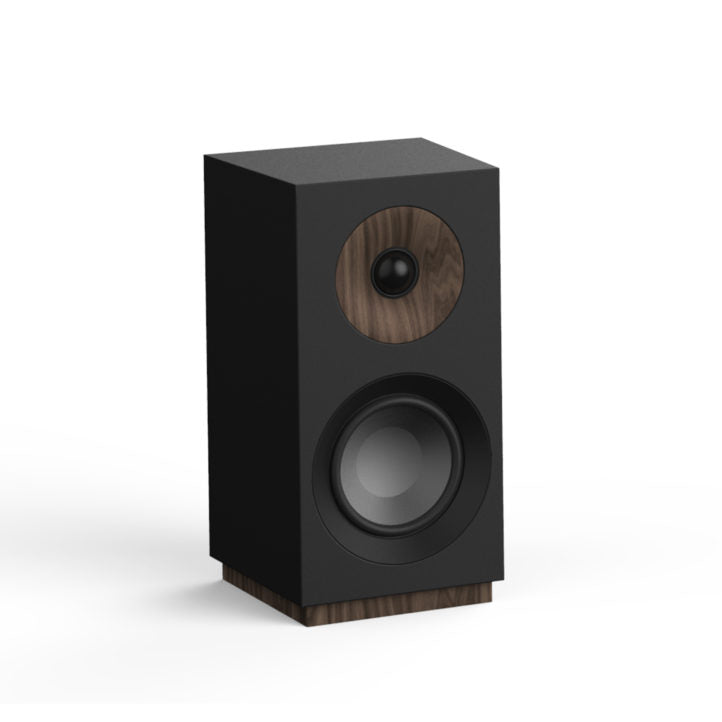

JAMO S 801 BOOKSHELF SPEAKER
- Elegant, contemporary design
- Compact cabinet for flexible placement
- WaveGuide acoustic technology
- Seamless magnetic grille
- 25MM (1″) soft dome tweeter
- 102mm (4″) polyfiber woofer
SMALL CABINET, BIG SOUND
The compact cabinet of the S 801 allows for extremely versatile placement options, whether it’s part of a high performance home cinema, or standing alone as a 2-channel listening system in a chic, fashionable living space.Engineered to belie its small cabinet size, the S 801 is specifically designed to provide exceptional output and balanced, full sound in any application despite it’s small stature.
COMPLETELY NEW, COMPLETELY MODERN
The new Jamo Studio 8 series has been completely reimagined to live seamlessly in modern, premium environments. Contemporary material and finish choices accentuate the clean, minimalist lines of this European design, while the compact cabinet designs are an ideal solution for urban living environments around the world.
MAGNETIC GRILLES
Fully magnetic grilles – no mounting holes or push pins – for a clean, minimalistic front baffle design, while the large woven linen grille cloth creates visual interest with heavy texture.
ORGANIC FEATURES
Wood accents give handcrafted, natural look.
SPECIFICATIONS
| Frequency Response | 76Hz – 26kHz (+/- 3dB) | |
| Sensitivity | 85dB (2.83V @ 1m) | |
| Power Handling | 60W / 120W | |
| Impedance | 8 Ohm | |
| High Frequency Driver | 25mm (1”) Soft Dome Tweeter | |
| Low Frequency Driver | 102mm (4”) Polyfiber Woofer | |
| Crossover Frequency | 2kHz | |
| Speaker Enclosure | MDF | |
| Enclosure Type | Bass Reflex via Rear Firing Slot Port | |
| Inputs | Single Binding Posts | |
| Finish | Black, Walnut, White | |
| Dimensions | 285mm x 156mm x 163mm 11.22” x 6.14” x 6.42” | |
| Features: | Compact Size, 1 Aluminized Polyfiber Woofers,1 Soft Dome Tweeter | |
| Weight | 6 lb (2.7 kg) |
