HIGH-YIELD AMPLIFIER
All amplifiers in DALI subwoofers have the stamina to keep a high-yield performance and the headroom to draw out that little extra when needed.
Zoom the image with the mouse
M&K V12 Compact Subwoofer (Each)
R 41,990.00
DALI SUB E-12 F SUBWOOFER
R 15,490.00

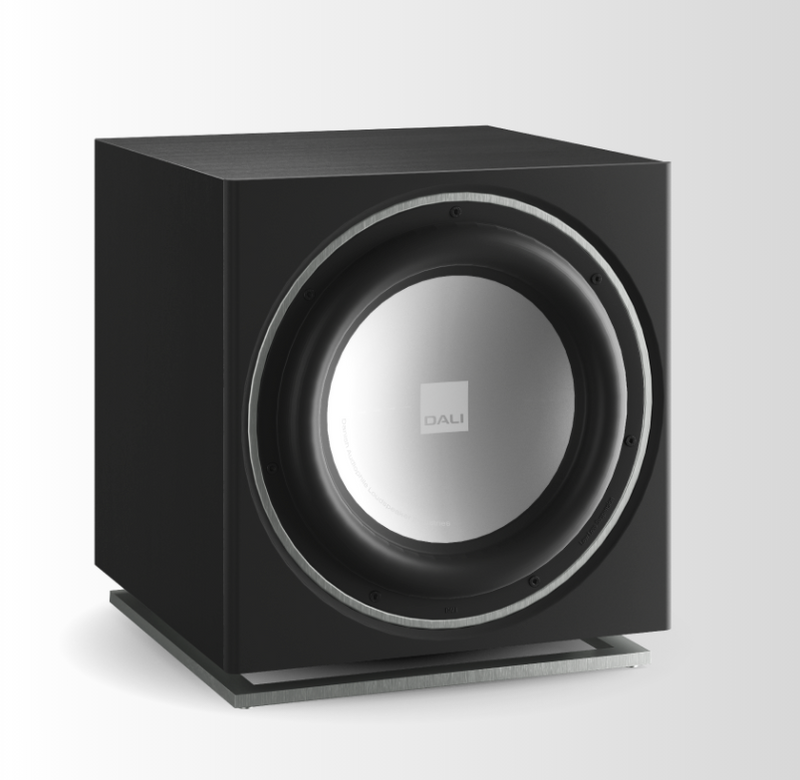

DALI SUB E-9 F SUBWOOFER
Subwoofer
R 11,490.00
Blending impressive bass reproduction with a stylish compact design, the E9F will effortlessly integrate into any compact stereo or full surround speaker system. The aluminium cone woofer has an amazing ability to move an impressive amount of air with both speed and control. The oversized, downward firing bass ports adds...
Blending impressive bass reproduction with a stylish compact design, the E9F will effortlessly integrate into any compact stereo or full surround speaker system. The aluminium cone woofer has an amazing ability to move an impressive amount of air with both speed and control. The oversized, downward firing bass ports adds extra ‘virtual cone surface’ at the lowest frequencies, leading to less stress on the 9” woofer and subsequently lower total distortion levels on the E9F’s entire operating range.
The aluminium cone is stiff, yet lightweight. This ensures a great transient and an elegant visual experience.
The switch mode power supply offers very low power consumption – only 0.4 Watt in stand-by mode, but delivers up to 220 Watts of peak power.
FLEXIBLE CONNECTIVITY
All DALI subwoofers are compatible with almost any amplifier, receiver or processor due to the choice of LFE or LINE inputs.
ELIMINATE TURBULENCE
Appearing to hover above the floor, the cabinet is effectively decoupled from the floor by means of four polymer-based oversized spikes. The distance of 30 mm eliminates any potential turbulence from the space between the cabinet and the floor itself.
ELEGANT AND SIMPLE DESIGN
The cabinet is designed to fit perfectly to the size of the woofer, but without forgoing the inner volume that is needed to produce a powerful bass performance.
Available in black/white/light walnut
Specifications
| Frequency Range (+/-3 dB) [Hz]: | 37 – 200 |
| Maximum SPL [dB]: | 111 |
| Crossover frequencies [Hz]: | 40 – 120 |
| Low Frequency Driver: | 1 x 9” long stroke, Aluminium |
| Enclosure type: | Bass reflex |
| Bass Reflex Tuning Frequency [Hz]: | 39.0 |
| Max. Amplifier Power Output [RMS watt]: | 25k |
| Continous IEC Power Output [RMS watt]: | 220 |
| Input Impedance [ohms]: | 170 |
| Connection input(s): | Mono line level (LFE) Stereo line level (low pass filtered) RCA |
| Recommended Placement: | Floor, near wall or corner |
| Recommended Distance From Wall [cm]: | > 5 |
| Functions: | Crossover Frequency Phase Switch Standby (Auto Power) On/Off Switch Volume (Gain) |
| Maximum Power Consumption [W]: | 250 |
| Max. Dimensions Incl. Base And Grille (HxWxD) [mm]: | 307 x 288 x 311 |
| Weight [kg]: | 11.0 |
| Available Finish: | Black Ash Vinyl, Light Walnut Vinyl, White Vinyl |
| Accessories incl.: | Manual, Power cord |
| Optional accessories: | Grille (Black, White, Ice) |
