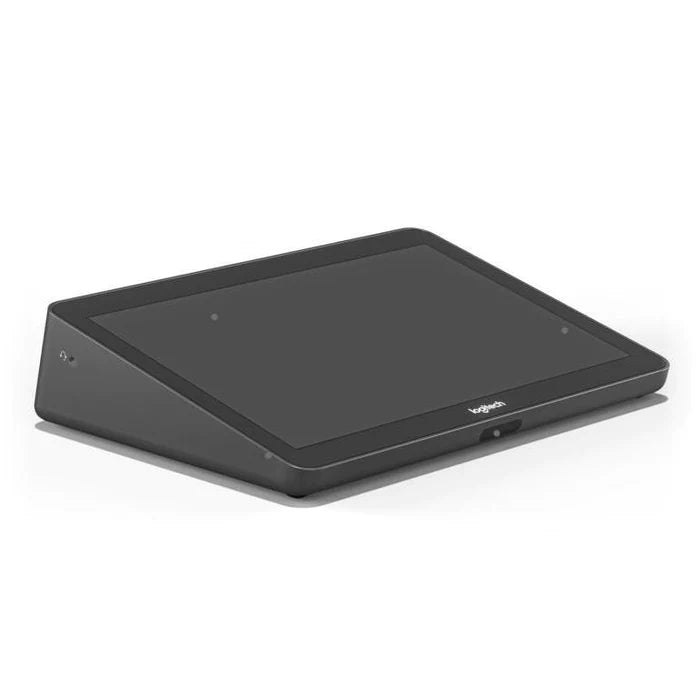

LOGITECH TAP

Make video meetings simple to join with a touch controller with wireless and HDMI content-sharing.

DEPLOY ROOM SOLUTIONS WITH EASE

Transform your space into a Google Meet^™ meeting place or a Microsoft Teams^® Rooms on Windows^® with Logitech Tap. Deliver one-touch join, calendar integration, easy content-sharing, and a consistent experience across all rooms.

JUST THE RIGHT PRESENCE

With a spacious 10.1” display, low profile, and motion sensor for always-on readiness, Tap has a sleek and unobtrusive presence in the room.

SIMPLE AND SECURE CABLING

Route cables out the back or through the bottom. Keep connections tight with built-in strain relief and retention mechanisms.

MULTIPLE MOUNTING OPTIONS

Install Tap almost anywhere in the room with Table and Riser Mounts that fit standard grommets and rotate 180° for visibility and convenience, or save table space in small rooms with the Wall Mount.

CLEAN INSTALLATION

Flexible cabling lets you locate Tap near participants for convenient operation while installing the host computer in a cabinet, beneath a table, or behind a display.

DIMENSIONS

Height: 58 mm

Width: 244 mm

Depth: 179 mm

Weight: 1.25 kg

TOUCH SCREEN

• 10.1” diagonal screen with 14° display angle
• Oleophobic and anti-glare coating
• 1280 x 800 resolution

SYSTEM REQUIREMENTS

Windows® 10

Chrome OS™ 80 and higher

Logi CollabOS

USB 2.0, 3.0, or 3.1 Type A port

PORTS AND INTERFACES

• USB 2.0/3.0/3.1 Type C (to meeting room host system)
• USB 2.0 Type A (for accessory connection)
• HDMI input (for 1080p video + audio content sharing)
• 3.5 mm 4 pole Headset Jack

TECHNICAL SPECIFICATIONS

GENERAL SPECIFICATIONS

COMPATIBILITY AND CERTIFICATIONS

DisplayLink Plug and Display™: Tap connects via USB as an additional display for supported operating systems, including Windows 10 and Chrome OS

OPTIONAL ACCESSORIES

• Internal cable retention and strain relief system
• Integrated ultrasonic speaker
• Integrated PIR Motion Sensor
• 100mm x 100mm VESA FDMI (Flat Display Mounting Interface)
• Kensington Lock slots (2)
• Logitech Tap is certified as a touch controller for video conferencing room solutions
  • Google Meet™
  • GoToRoom
  • Microsoft Teams Rooms on Windows
  • Pexip™ Room
  • RingCentral Rooms™
  • Zoom Rooms™
• Table Mount
• Riser Mount
• Wall Mount
• Cat5e Kit ³For Tap devices currently connected with Strong USB

PACKAGE CONTENTS

• Tap Touch Controller
• Logitech Strong USB 2.0 / 3.0 / 3.1 / 3.2 Cable 10 m
• Type A (male) to Type C (male)
• Aramid-reinforced
• Plenum Rated
• Eca / IEC 60332-1-2 Compliant
• 20 mm Conduit friendly
• HDMI 1.4a cable 2.0 m
• Power adaptor with regional plugs (100-240v) 2.95 m
• VESA Mounting Screws (4)
• Microfiber Cloth
• Documentation

WARRANTY INFORMATION

2-Year Limited Hardware Warranty
